Strong force spinning machines
YDMC spinning machine
Product Features:
Has two levels of spinning technologies of primary spin and precision spin, the spinning work pieces are stable and reliable.
Can be spinning varieties of different steel wheel spokes / discs; and also suitable for Aluminum Wheels spinning, by changing spinning moulds.
The press with advanced structure and high performance, reach the international advanced level.

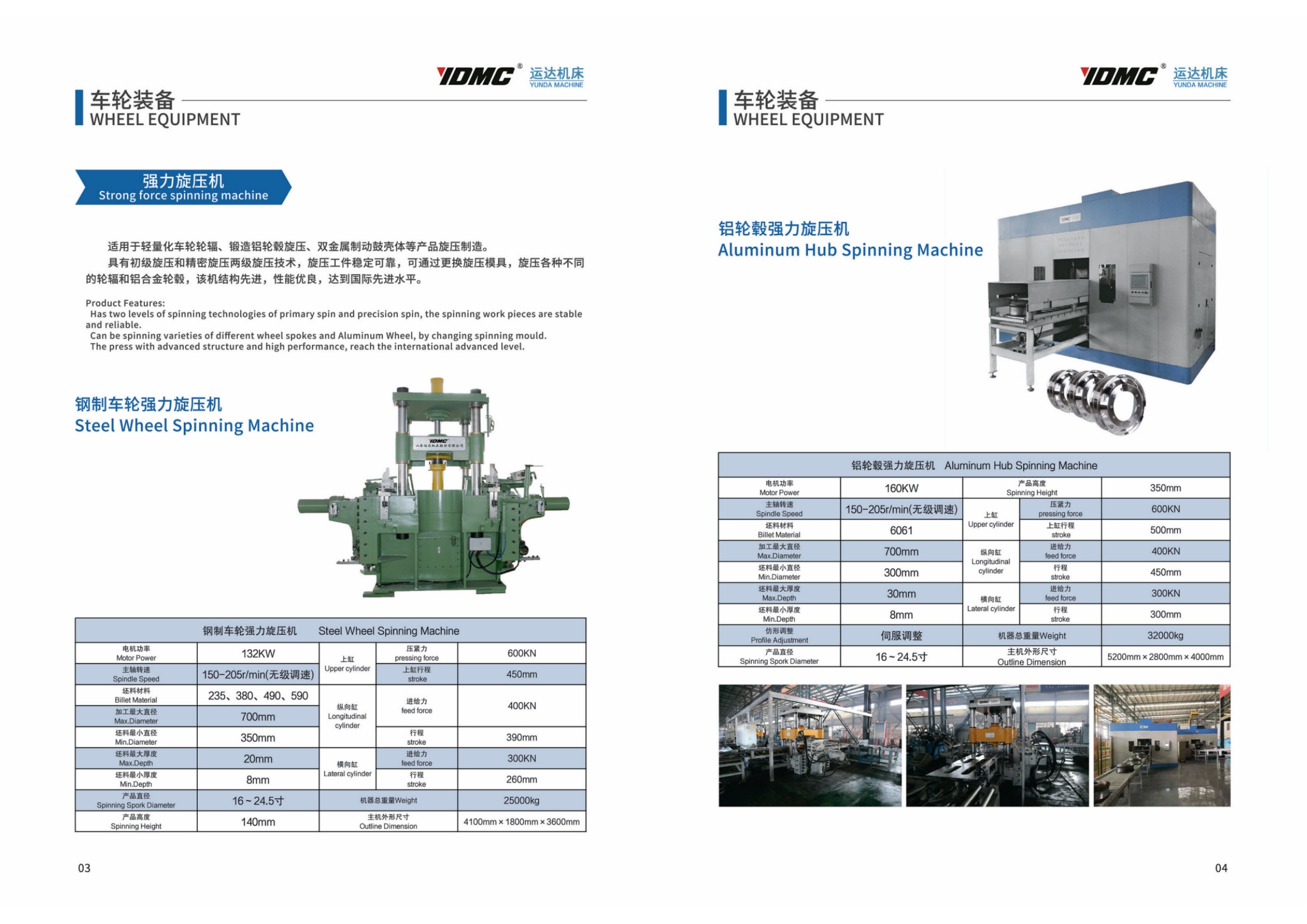

钢制车轮强力旋压机 Steel Wheel Strong Force Spinning Machine | ||||
电机功率 Motor Power |
132KW |
上缸 Upper cylinder |
压紧力 pressing force |
600KN |
主轴转速 Spindle Speed |
150-205r/min(无级调速) |
上缸行程 stroke |
450mm | |
坯料材料 Billet Material |
235、380、490、590 |
纵向缸 Longitudinal cylinder |
进给力 feed force |
400KN |
加工最大直径 Max.Diameter |
700mm | |||
坯料最小直径 Min.Diameter |
350mm |
行程 stroke |
390mm | |
坯料最大厚度 Max.Depth |
20mm |
横向缸 Lateral cylinder |
进给力 feed force |
300KN |
坯料最小厚度 Min.Depth |
8mm |
行程 stroke |
260mm | |
产品直径 Spinning Spork Diameter |
16~24.5吋 | 机器总重量N.Weight | about 25000kg | |
产品高度 Spinning Height |
140mm |
主机外形尺寸 Outline Dimension |
4100mm×1800mm×3600mm | |
铝轮毂强力旋压机 Aluminum Hub Strong Force Spinning Machine | ||||
电机功率 Motor Power |
160KW |
产品高度 Spinning Height |
350mm | |
主轴转速 Spindle Speed |
150-205r/min(无级调速) |
上缸 Upper cylinder |
压紧力 pressing force |
600KN |
坯料材料 Billet Material |
6061 |
上缸行程 stroke |
500mm | |
加工最大直径 Max.Diameter |
700mm |
纵向缸 Longitudinal cylinder |
进给力 feed force |
400KN |
坯料最小直径 Min.Diameter |
300mm |
行程 stroke |
450mm | |
坯料最大厚度 Max.Depth |
30mm |
横向缸 Lateral cylinder |
进给力 feed force |
300KN |
坯料最小厚度 Min.Depth |
8mm |
行程 stroke |
300mm | |
仿形调整 Profile Adjustment |
伺服调整 | 机器总重量N.Weight | about 32000kg | |
产品直径 Spinning Spork Diameter |
16~24.5吋 |
主机外形尺寸 Outline Dimension |
5200mm×2800mm×4000mm | |

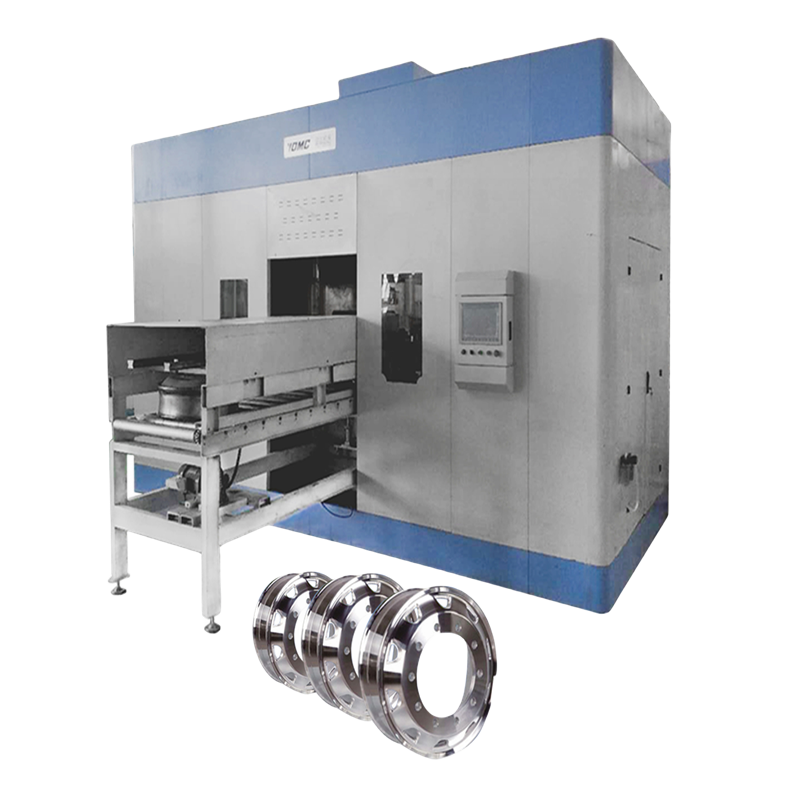

数控强力旋压机 NC Strong Force Spinning Machine | ||||
主轴扭矩 Spindle torque |
6600Nm |
产品高度 Spinning Height |
350mm | |
主轴转速 Spindle Speed |
100-300r/min(无级调速) |
上缸 Upper cylinder |
压紧力 pressing force |
600KN |
旋压产品 Spinning products |
铝轮、钢轮 |
上缸行程 stroke |
500mm | |
加工最大直径 Max.Diameter |
800mm |
纵向缸 Longitudinal cylinder |
进给力 feed force |
400KN |
坯料最小直径 Min.Diameter |
300mm |
行程 stroke |
400mm | |
坯料最大厚度 Max.Depth |
30mm |
横向缸 Lateral cylinder |
进给力 feed force |
400KN |
坯料最小厚度 Min.Depth |
8mm |
行程 stroke |
350mm | |
数控系统 numerical control |
G代码编程 | 机器总重量N.Weight | about 35000kg | |
产品直径 Spinning Spork Diameter |
16~24.5吋 |
主机外形尺寸 Outline Dimension |
5700mm×2500mm×4000mm |
