Double-location CNC Vertical Lathe

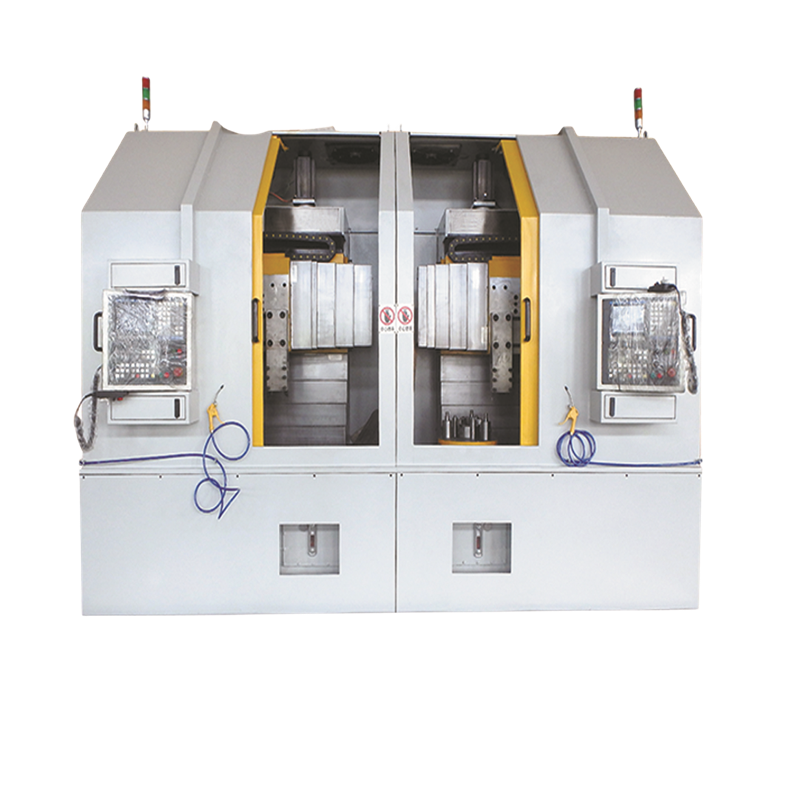

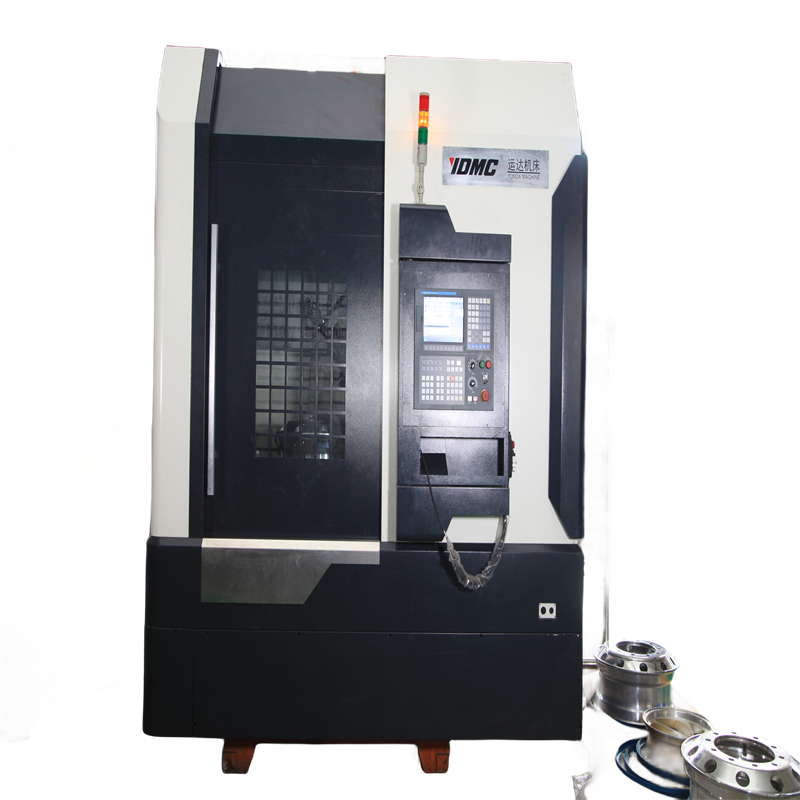

Our Dual-Table, Dual-CNC, Dual-Spindle, Double-location CNC Lathes best suitable for fully-automatic lines or semi-automatic lines.

Our this model CNC Vertical Lathe Machine is mainly used for turning machining, wide column, single tool holder design, hydraulic chuck to tighten the workpiece, high degree of automation, providing a host basis for robot operation.

This machine is mainly composed of spindle box, column, longitudinal guide rail, fixture, hydraulic station, electric control cabinet, protective cover and power system, hydraulic system, program control system.

The clamp is a special hydraulic automatic clamp for the spoke, and the clamping force is stable and reliable.

The PLC system can independently set the operating parameters, do not interfere with each other, machining accuracy is higher, and can be automatically completed in accordance with the set program: host start, fast forward, work, reset and other processing processes. And has the function of timing and counting.

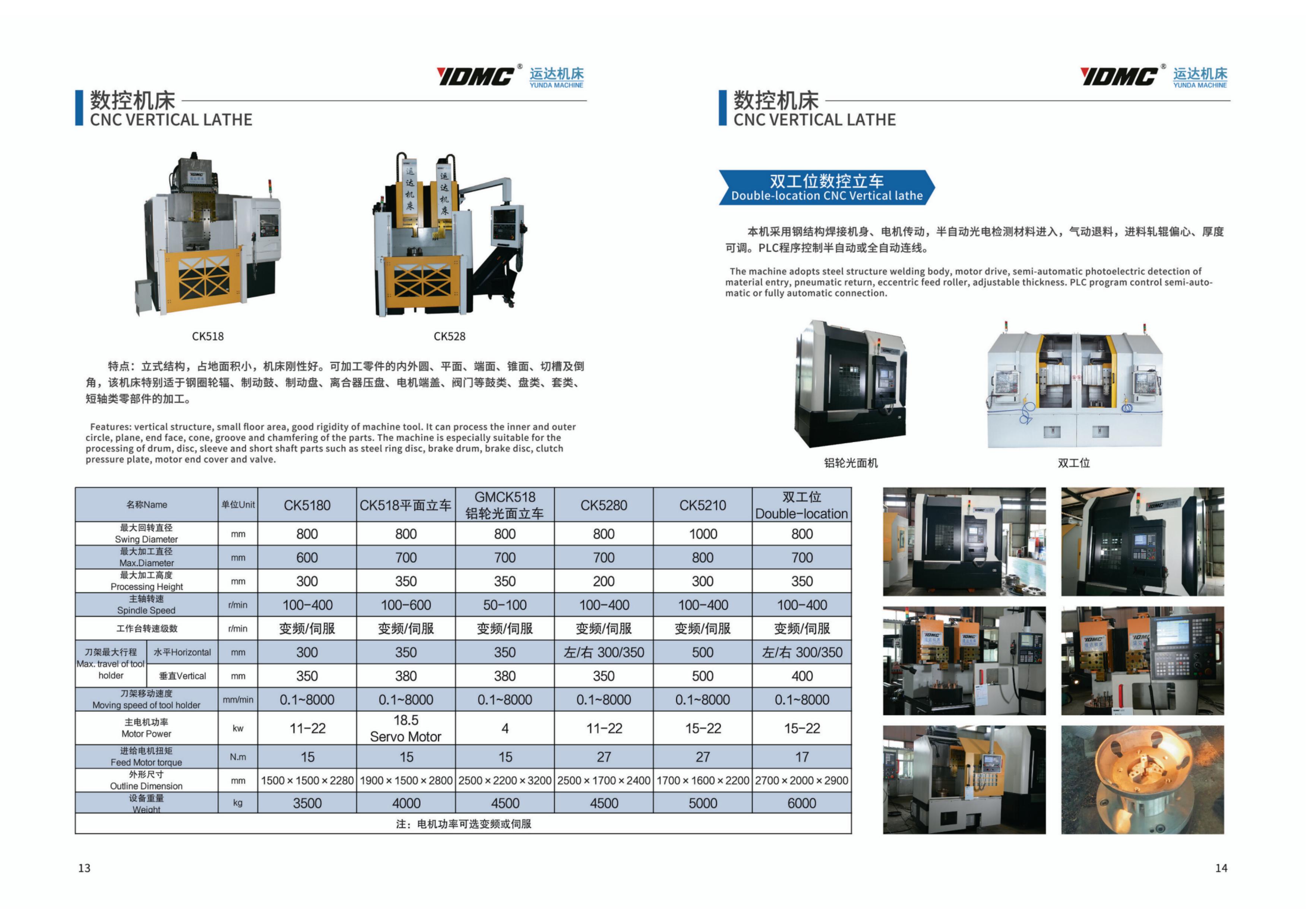

名称Name		单位Unit	CK5180	CK518平面立车	GMCK518 铝轮光面立车	CK5280	CK5210	双工位 Double-location
最大回转直径 Swing Diameter		mm	800	800	800	800	1000	800
最大加工直径 Max.Diameter		mm	700	700	700	700	800	700
最大加工高度 Processing Height		mm	300	350	350	200	300	350
主轴转速 Spindle Speed		r/min	100-400	100-600	50-100	100-400	100-400	100-400
工作台转速级数		r/min	变频CONVERTER	伺服SERVO	变频CONVERTER	变频CONVERTER	变频CONVERTER	变频CONVERTER
刀架最大行程 Max. travel of tool holder	水平Horizontal	mm	300	350	350	左/右 300/350	500	左/右 300/350
刀架最大行程 Max. travel of tool holder	垂直Vertical	mm	350	380	380	350	500	400
刀架移动速度 Moving speed of tool holder		mm/min	0.1~8000	0.1~8000	0.1~8000	0.1~8000	0.1~8000	0.1~8000
主电机功率 Motor Power		kw	11-22	18.5 Servo Motor	4	11-22	15-22	15-22
进给电机扭矩 Feed Motor torque		N.m	15	17	19	19	19	17
外形尺寸 Outline Dimension		mm	1500×1500×2280	1900×1500×2800	2500×2200×3200	2500×1700×2400	1700×1600×2200	2700×2000×2900
设备重量 Weight		kg	3800	4500	4500	4500	5000	6000
注：电机功率可选变频或伺服SERVO MOTOR optional, Larger models CNC Vertical Lathes optional
