Aluminum wheels CNC Lathe
Max. machining Diameter 700 mm
Products
Products DETAILS
Aluminum wheels CNC Lathe
Swing Diameter |
800 mm |
Max. Machining Diameter |
700 mm |
Processing Height |
350 mm |
Spindle Speed |
50-100 rpm |
Table speed series |
Frequency conversion/servo |
Max. travel of tool holder |
Horizontal 350 mm |
Vertical 380 mm |
|
Moving speed of tool holder |
0.1~8000 mm |
Motor Power |
4 kw |
Feed Motor torque |
15 n.m |
Outline Dimension |
2500×2200×3200 mm |
Weight |
4500 kgs |

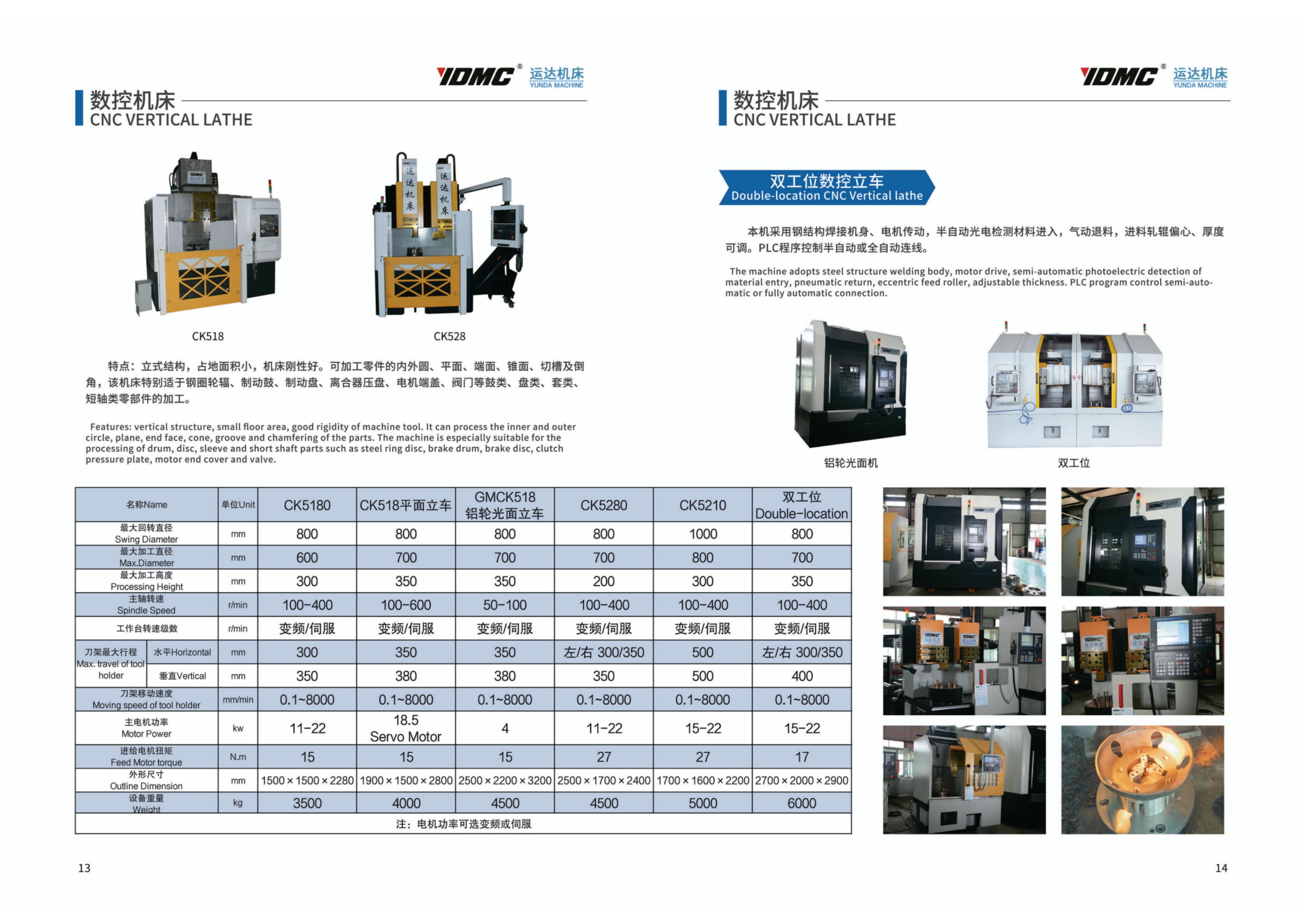

![](/upload/image/20240621/20240621210601_46904.jpg)
