Products DETAILS

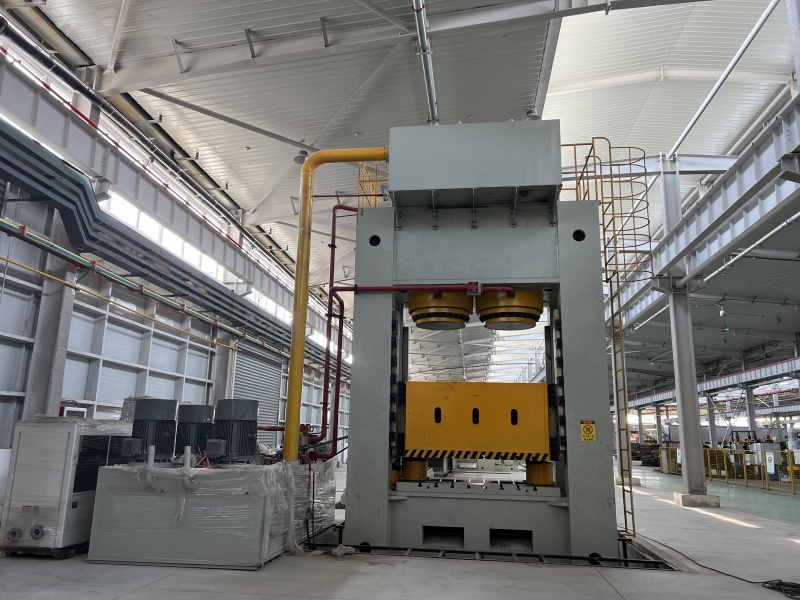

Hydraulic Press

Main functions:

Suitable for steel wheel production pressing processes, such as forming, punching, bending, flanging.

Several models Hydraulic press machines might be needed during steel wheels disc/spoke productions.

They're used to calibrate and press assemble molding processes.


Serial number

Technical parameter

unit

2500T

1250T

800T

1

Nominal force

KN

25000

12500

8000

2

Buffering force

KN

8000

5000

4000

3

Slide travel

mm

900

800

600

4

Maximum opening height

mm

1500

1400

1200

5

Maximum working pressure of liquid

MPa

25

25

25

6

Buffer cylinder stroke

mm

50

50

50

7

Buffer adjustable stroke

mm

400

300

300

8

Slider speed

No-load down

mm/s

250

250

250

Work Progress

mm/s

8-20

8-20

8-20

Backhaul

mm/s

220

220

220

9

Effective size of table

Left and right dimensions

mm

2500

2100

1400

Front and rear dimensions

mm

1500

1400

1200

Height above ground

mm

800

700

550

10

Equipment structure




Frame type/with drain port

Frame type/with drain port

Frame type

11

Total motor power

kW

270

148

82

12

Control mode



PLC

13

Working medium



45# anti-wear hydraulic oil

14

T-slot specifications



Execute according to manufacturer's standard
