Porous drill machine
Porous drill machine
Products
Products DETAILS

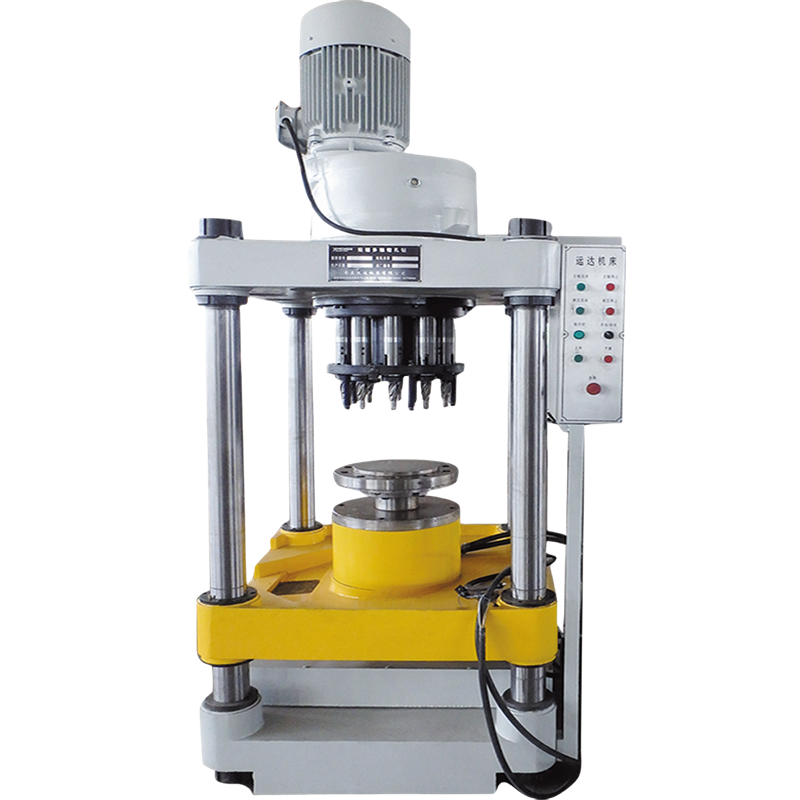

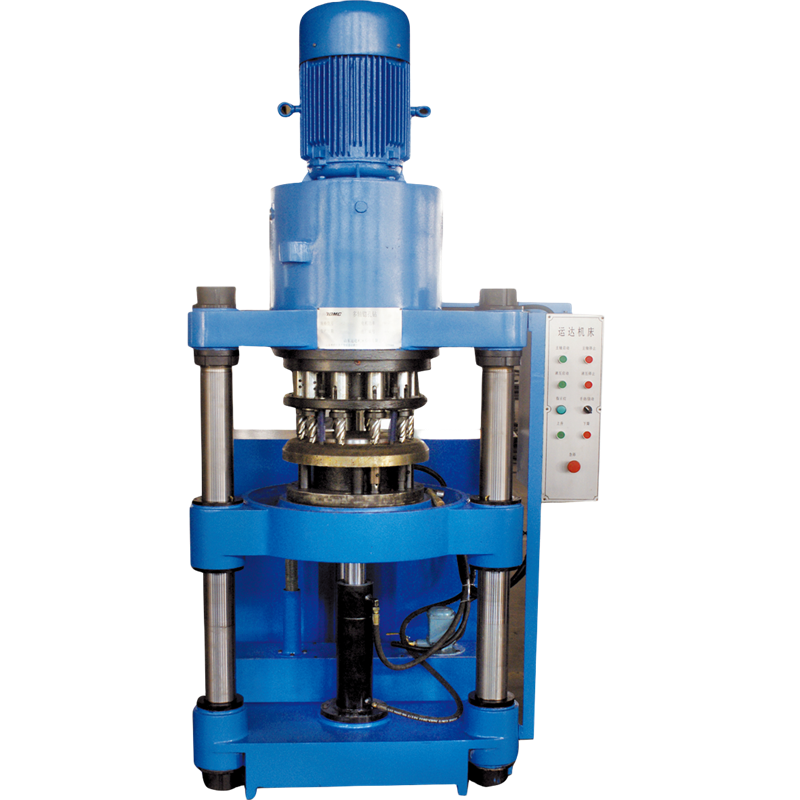

Porous drill machine
The whole process of drilling, reaming and spot-making can be carried out on the bolt holes of the steel wheel rim, clutch and other porous parts. The machine adopts double controls of hydraulic stroke control and electrical control , which has the characteristics of accurate and safe and reliable.
|
DKZ-4 (Four-columns） DKZ-3 (Three-columns） |
|
|
Max.diameter |
620 mm |
|
Bolt Hole Distribution |
190-406 mm (or per Customer) |
|
Workbench Stroke |
0-240 mm |
|
Spoke Height |
30-160 mm |
|
Spindle Speed |
205 r/min |
|
Motor Power |
11 Kw |
|
Weight |
2500 Kg |
|
Hydraulic Pressure |
4 Mpa |
