Porous drill machines DKZ-3
Porous drill machines DKZ-3 多孔钻
Products
Products DETAILS

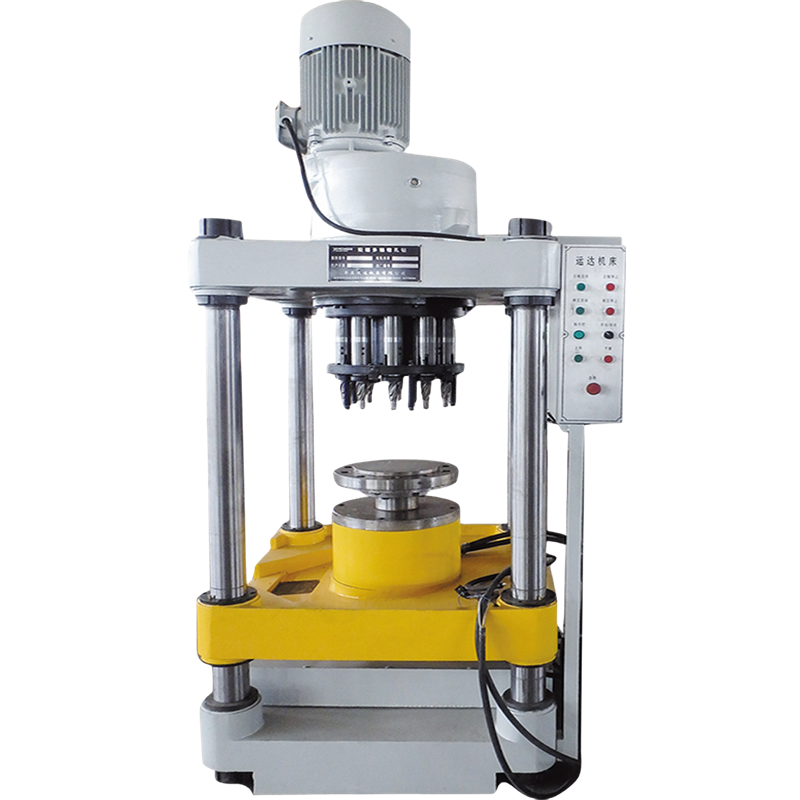

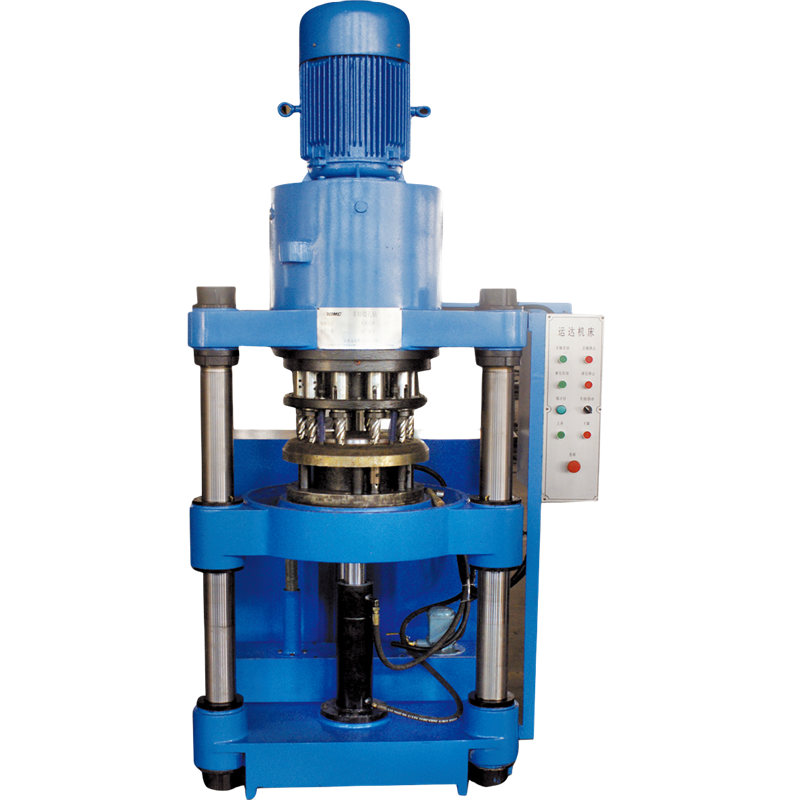

Porous drill machines DKZ-3
The whole process of drilling, reaming and spot-making can be carried out on the bolt holes of the steel wheel rim, clutch and other porous parts. The machine adopts double controls of hydraulic stroke control and electrical control , which has the characteristics of accurate and safe and reliable.
|
DKZ-3 (Three-column） DKZ-4 (Four-column） |
|
|
Max. Diameter |
620 mm |
|
Bolt Hole Distribution |
190-406 (or per Customer) |
|
Workbench Stroke |
0-240 mm |
|
Spoke Height |
30-160 mm |
|
Spindle Speed |
205 r/min |
|
Motor Power |
11 Kw |
|
Weight |
2500 Kg |
|
Hydraulic Pressure |
4 Mpa |
